C64 Bridge

Your AI Command Bridge for the Commodore 64.

C64 Bridge is an MCP server for controlling and working with a Commodore 64 from an AI client.

It lets you run programs, read and write memory, render graphics, and play sound on a C64 Ultimate, Ultimate 64, or U2-family cartridge. You can also switch to a VICE emulator session, so one MCP conversation can span hardware and emulation.

It is built on the official TypeScript `@modelcontextprotocol/sdk` and supports both `stdio` for local AI integration and an optional HTTP bridge for manual inspection.

C64 Bridge is listed in the Official MCP Registry.

Contents

• C64 Bridge
  • Contents
  • Overview
  • Features
  • Quick Start
    • 1. Install Node.js 24+ and npm
    • 2. Start the Server
    • 3. Add Backend Configuration
    • 4. Connect from an MCP Client
  • Configuration
    • Configuration File Order
    • Configuration Merge Rules
    • Backend Configuration: C64 Ultimate
    • Backend Configuration: U2-family
    • Backend Configuration: VICE
      • VICE Window Modes
      • Recommended VICE Configurations
    • Runtime Backend Switching
  • VS Code MCP Setup
    • Enable the C64 Agent
    • Optional Overrides
    • Environment Variables in MCP Client Configs
    • Runtime Environment Variable Reference
      • Server Runtime
      • C64 Ultimate
      • VICE Runtime
      • VICE Audio Capture
      • SID Playback
      • RAG
      • Testing
  • Claude Code
  • Example Workflow
  • HTTP Invocation
  • Build and Test
  • Documentation
  • Static MCP Interface
  • MCP API Reference
    • Tools
      • c64\_batch
      • c64\_config
      • c64\_debug
      • c64\_disk
      • c64\_drive
      • c64\_extract
      • c64\_graphics
      • c64\_input
      • c64\_memory
      • c64\_printer
      • c64\_program
      • c64\_rag
      • c64\_select\_backend
      • c64\_sound
      • c64\_stream
      • c64\_system
      • c64\_vice
    • Resources
    • Prompts

Overview

C64 Bridge gives an AI agent one place to drive program execution, memory access, graphics, sound, storage, printer workflows, and knowledge retrieval for a Commodore 64 environment.

The core workflow is simple:

1. Start the MCP server.

2. Point it at C64U/U64 hardware, a U2-family cartridge, VICE, or any configured combination.

3. Let the client call grouped MCP tools such as `c64_program`, `c64_memory`, `c64_graphics`, and `c64_sound`.

4. Switch backends at runtime with `c64_select_backend` when both are configured.

Features

• Program runners for BASIC, 6510 assembly, and PRG or CRT execution
• Full memory access, including raw reads and writes plus screen polling
• System integration for drives, files, printers, and task orchestration
• SID music tools for playback, composition, generation, and verification
• Built-in knowledge resources and prompts for safer LLM workflows
• Mixed runtime support for `c64u` (C64U/U64), `u2` (U2/U2+/U2+L), and `vice`

Quick Start

If you want the shortest path, do these four things:

1. Install Node.js 24+ and npm.

2. Start the server.

3. Add backend configuration for C64U/U64, U2-family, VICE, or any combination.

4. Connect from VS Code or another MCP client.

1. Install Node.js 24+ and npm

Linux (Ubuntu or Debian):

Recommended:

sudo apt update
sudo apt install -y curl ca-certificates
curl -fsSL https://deb.nodesource.com/setup_24.x | sudo -E bash -
sudo apt install -y nodejs

Fallback:

sudo apt install -y nodejs npm

macOS:

brew install node@24
brew link --overwrite node@24

Windows:

# winget
winget install OpenJS.NodeJS.LTS
# or Chocolatey
choco install nodejs-lts -y

Verify the installation:

node --version

Expected result: `v24.x`

2. Start the Server

Use one of the following entry points.

Run from `npx` with zero setup:

npx -y c64bridge@latest

Run from a local npm install:

mkdir -p ~/c64bridge && cd ~/c64bridge
npm init -y
npm install c64bridge
node ./node_modules/c64bridge/dist/index.js

Run from source for development or testing:

git clone https://github.com/chrisgleissner/c64bridge.git
cd c64bridge
./build install
npm start

On startup, the server probes the selected target, performs connectivity checks, and then announces that it is running on stdio.

3. Add Backend Configuration

The server can run against one or more of:

• C64U/U64 hardware (`c64u`)
• U2, U2+, or U2+L (`u2`)
• VICE (`vice`)

The detailed lookup order, merge rules, backend examples, and override model are in the Configuration section below.

4. Connect from an MCP Client

C64 Bridge ships a single canonical `stdio` entry point that every MCP client uses:

• VS Code (GitHub Copilot) — see VS Code MCP Setup.
• Claude Code (CLI and VS Code plugin) — see Claude Code.
• Cursor, Visual Studio, VS Code Insiders — use the install badges at the top of this README.
• Any other MCP client — point it at the same `stdio` server, with the environment variables documented in Runtime Environment Variable Reference and the registry manifest in mcp.json.

The startup command is the same across clients: `npx -y c64bridge@latest` for the published package, or `node scripts/start.mjs` from a local checkout. Select `c64u`, `u2`, or `vice` in the shared Configuration; clients only need the command.

Configuration

Configuration File Order

The server reads configuration in this order:

1. `C64BRIDGE_CONFIG`, if it points to a config file

2. `.c64bridge.json` in the project root

3. `~/.c64bridge.json` in the home directory

Configuration Merge Rules

Configuration is merged per backend section while scanning those files in order.

• The first file that contains each backend section (`c64u`, `u2`, or `vice`) supplies that backend's configuration.
• This allows a project-local `.c64bridge.json` to define `c64u` while `~/.c64bridge.json` defines `u2` or `vice`.

Backend Configuration: C64 Ultimate

Use this for a C64 Ultimate or Ultimate 64:

{
  "c64u": {
    "host": "c64u",
    "port": 80,
    "networkPassword": "secret"
  }
}

• If no file is found, the default target is `c64u:80` with no network password.
• `networkPassword` is only needed when you enabled a password in the C64 Ultimate network settings.
• `C64U_HOST`, `C64U_PORT`, and `C64U_PASSWORD` override the configured host, port, and network password.

Firmware Requirements for Native Input and Menu Screens

The following operations require recently added Ultimate REST endpoints. C64 Bridge detects or explains unavailable endpoints without exposing a raw firmware error.

Before choosing an endpoint-dependent operation, read `c64://platform/status`. It probes `machine:input` safely and reports whether it is available. When native input is unavailable, use `key` or `write_text` for ordinary C64 input instead of physical matrix events. `machine:menu_screen` can only be confirmed after an Ultimate menu is visible; its tool returns fallback guidance rather than a transport error when no matrix can be read.

• `c64_input` `keyboard`, `release_all`, and `state`, plus hardware `joystick`, use `machine:input`. They require a C64U firmware version that provides this endpoint, or U64 firmware 3.15 or later. `machine:input` is not available on U2-family cartridges.
• `c64_system` `read_menu_screen` uses `machine:menu_screen`; it requires a C64U firmware version that provides this endpoint, or U64/U2 firmware 3.15 or later.
• On C64U/U64, `c64_system` `power_cycle` verifies Tool Menu navigation with `machine:menu_screen`, so it has the same firmware requirement. U2-family `power_cycle` uses REST reboot instead.

Backend Configuration: U2-family

Use this profile for U2, U2+, and U2+L cartridges:

{
  "u2": {
    "host": "u2",
    "port": 80,
    "networkPassword": "secret"
  }
}

Set `C64_MODE=u2` to make this the initial backend. `U2_HOST`, `U2_PORT`, and `U2_PASSWORD` override this profile. U2-family firmware exposes the shared REST subset; it does not provide machine input, debug-register access, power-off, or streaming. `read_menu_screen` requires U2 firmware 3.15 or later.

Backend Configuration: VICE

C64 Bridge can either connect to an already running VICE Binary Monitor or manage a local VICE process for you. The usual managed setup only needs the emulator binary and, when auto-detection cannot find it, the VICE resource directory:

{
  "vice": {
    "exe": "/usr/bin/x64sc",
    "directory": "/usr/local/share/vice"
  }
}

• `exe` is optional when `x64sc` or `x64` is on `PATH`. If no explicit binary is configured, the runtime prefers `/usr/local/bin/x64sc` when present, then falls back to `x64sc` or `x64` on `PATH`.
• `directory` is optional. When omitted, C64 Bridge auto-detects a VICE resource directory by looking for the standard C64 ROM set near the emulator binary and in common system locations.
• `host` and `port` are optional and default to `127.0.0.1:6502`, the Binary Monitor endpoint C64 Bridge starts for managed local sessions. On local endpoints, C64 Bridge first tries to reuse an already running monitor before starting its own process.
• `visible`, `warp`, and `args` are optional runtime controls. They can live in JSON config, but most users set their environment-variable equivalents from the MCP client because they are per-session preferences.
• By default, VICE is started lazily on first access. When setting the environment variable `VICE_PREWARM=1`, C64 Bridge starts or connects VICE in the background during MCP startup.
• `VICE_BINARY`, `VICE_DIRECTORY`, `VICE_HOST`, `VICE_PORT`, `VICE_VISIBLE`, `VICE_WARP`, `VICE_ARGS`, and `VICE_PREWARM` override the JSON values without editing config files.

VICE Window Modes

Choose the window mode based on where the MCP server runs:

Minimized and headless are not the same thing. Minimized is still a visible desktop session with a real VICE window; it is simply hidden by the window manager at startup. Headless/Xvfb has no user-facing window, so it is better for automation but less convenient when you need to debug by looking at the emulator.

For normal local MCP use, prefer minimized VICE. It avoids focus stealing while preserving the ability to restore the window for visual inspection. Prefer headless/Xvfb for CI and remote or display-less environments.

`FORCE_XVFB=1` forces the Xvfb path even if a graphical session is available. `DISABLE_XVFB=1` disables that fallback and uses the current display, which is mainly useful for troubleshooting display detection.

Recommended VICE Configurations

Local agent session, VICE starts minimized:

{
  "servers": {
    "c64bridge": {
      "command": "npx",
      "args": ["-y", "c64bridge@latest"],
      "env": {
        "C64_MODE": "vice",
        "VICE_VISIBLE": "true",
        "VICE_ARGS": "-minimized",
        "VICE_WARP": "false"
      }
    }
  }
}

Headless automation, VICE runs without a visible desktop window:

{
  "servers": {
    "c64bridge": {
      "command": "npx",
      "args": ["-y", "c64bridge@latest"],
      "env": {
        "C64_MODE": "vice",
        "VICE_VISIBLE": "false",
        "VICE_WARP": "true"
      }
    }
  }
}

If VICE is installed outside the usual search paths, add `VICE_BINARY` and, if ROM/resource auto-detection fails, `VICE_DIRECTORY` to either example.

> [!NOTE]

> VICE supports only the operations marked with a VICE checkmark in the MCP API Reference. Unsupported operations return `unsupported_platform`.

Runtime Backend Switching

Configure any combination of `c64u`, `u2`, and `vice`. C64 Bridge starts on `C64_MODE` (default `c64u`) and keeps every configured backend ready for `c64_select_backend`.

Use `c64://platform/status` to inspect the active backend and available tools. State the target in the same prompt, for example `u2: list drives`, `c64u: run this PRG`, or `vice: write HELLO`. On U2-family cartridges, `c64_system` `power_cycle` uses REST reboot; C64U/U64 uses verified Tool Menu navigation, and VICE starts fresh.

Prompt illustration (issued via Copilot in VS Code, using GPT 5.4 Medium):

c64u: write a small BASIC program that clears the screen and prints HELLO C64U

vice: write a small BASIC program that clears the screen and prints HELLO VICE

The screenshots below are available for the two backends that provide frame capture. C64U uses streamed video frames; VICE captures and normalizes its display. U2-family cartridges do not provide firmware streaming, so they intentionally have no screenshot row.

VS Code MCP Setup

This section covers the GitHub Copilot integration that ships with VS Code. For the Claude Code VS Code plugin, see Claude Code — it reads `.mcp.json`, not `.vscode/mcp.json`.

If this repository is checked out locally, open the prepared .vscode/mcp.json.

Otherwise, put the following into your own `.vscode/mcp.json`:

{
  "servers": {
    "c64bridge": {
      "command": "npx",
      "args": [
        "-y",
        "c64bridge@latest"
      ]
    }
  }
}

Then click the start button shown above the `c64bridge` entry.

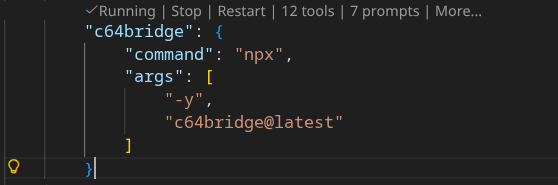

Your MCP server should now be running:

For more details, see the official VS Code MCP Server documentation.

Enable the C64 Agent

After the server is running, switch to the `C64` agent in VS Code.

This agent is preconfigured for Commodore 64 work. It steers Copilot toward `c64bridge` workflows for BASIC, 6502 assembly, SID audio, VIC-II graphics, memory inspection, disk operations, printing, streaming, and device control.

Optional Overrides

You can add `env` entries in `.vscode/mcp.json` to select a config file, override C64 Ultimate connection details, or force an initial backend:

{
  "servers": {
    "c64bridge": {
      "command": "npx",
      "args": [
        "-y",
        "c64bridge@latest"
      ],
      "env": {
        "C64BRIDGE_CONFIG": "/home/you/.c64bridge.json",
        "C64U_HOST": "192.168.1.99",
        "C64U_PORT": "80",
        "C64U_PASSWORD": "secret",
        "C64_MODE": "c64u",
        "LOG_LEVEL": "debug"
      }
    }
  }
}

• `C64BRIDGE_CONFIG` points to a specific config file
• `C64U_HOST`, `C64U_PORT`, and `C64U_PASSWORD` override the C64 Ultimate connection without editing config files
• `C64_MODE` forces the initial backend to `c64u`, `u2`, or `vice`; `U2_HOST`, `U2_PORT`, and `U2_PASSWORD` override the selected U2 profile.
• `LOG_LEVEL=debug` enables verbose logging

For VICE-specific overrides such as `VICE_ARGS=-minimized`, `VICE_VISIBLE=false`, or custom VICE paths, use the patterns in Backend Configuration: VICE.

Environment Variables in MCP Client Configs

Every runtime environment variable documented in the root mcp.json can be supplied by your MCP client configuration, including `.vscode/mcp.json` under `servers.c64bridge.env`.

When an environment variable maps to a JSON config field, the override order is always:

1. the explicit environment variable from your MCP client config or shell

2. the merged JSON config section loaded from `C64BRIDGE_CONFIG`, the repo `.c64bridge.json`, then `~/.c64bridge.json`

3. the built-in default compiled into the server

When an environment variable has no JSON config equivalent, the order is:

1. the explicit environment variable from your MCP client config or shell

2. the built-in default

That rule applies uniformly across the documented runtime environment variables below.

Example: start on minimized VICE with a specific ROM or resource directory, plus a hardware fallback that can still be selected instantly at runtime:

{
  "servers": {
    "c64bridge": {
      "command": "node",
      "args": ["${workspaceFolder}/scripts/start.mjs"],
      "type": "stdio",
      "env": {
        "C64_MODE": "vice",
        "C64U_HOST": "c64u",
        "C64U_PORT": "80",
        "VICE_BINARY": "/usr/local/bin/x64sc",
        "VICE_DIRECTORY": "/usr/local/share/vice",
        "VICE_VISIBLE": "true",
        "VICE_ARGS": "-minimized",
        "VICE_WARP": "false"
      }
    }
  }
}

Example: keep JSON config files for backend endpoints, but override diagnostics, polling, and RAG behavior from VS Code:

{
  "servers": {
    "c64bridge": {
      "command": "node",
      "args": ["${workspaceFolder}/scripts/start.mjs"],
      "type": "stdio",
      "env": {
        "C64BRIDGE_CONFIG": "/home/you/.c64bridge.json",
        "LOG_LEVEL": "debug",
        "C64BRIDGE_POLL_MAX_MS": "8000",
        "C64BRIDGE_POLL_INTERVAL_MS": "200",
        "RAG_BUILD_ON_START": "1",
        "RAG_EMBEDDINGS_DIR": "/home/you/c64bridge-data"
      }
    }
  }
}

Runtime Environment Variable Reference

Every runtime environment variable documented in `mcp.json` can be set in your MCP client configuration, including `.vscode/mcp.json` under `servers.c64bridge.env`.

Server Runtime

C64 Ultimate

U2-family

VICE Runtime

VICE Audio Capture

SID Playback

RAG

Testing

Claude Code

Claude Code is supported as a first-class MCP client. It uses the same canonical start command and the same backend Configuration files and environment variables as every other client — only the discovery file differs.

Claude Code CLI — register the published server in one command:

claude mcp add c64bridge -- npx -y c64bridge@latest

Use `--scope user` to make it available across all your projects, or `--scope project` to write a `.mcp.json` next to the current repo. Backend selection (`c64u`, `u2`, or `vice`), host, port, and password come from the same files documented in Configuration; per-shell overrides come from the variables in Runtime Environment Variable Reference.

Project-scoped discovery — this repository ships a checked-in .mcp.json that points Claude Code at the local source via `node scripts/start.mjs`. When you open the repo with `claude` (CLI or VS Code plugin), Claude Code prompts to enable the project-scoped server on first run. Approve it once and the `c64_*` tools become discoverable in that workspace.

Claude Code VS Code plugin — the plugin reads the same `.mcp.json` and the same user-scope `claude mcp add` registrations as the CLI. No extra setup is required beyond installing the plugin and approving the project server prompt. The existing .vscode/mcp.json is read by GitHub Copilot, not by Claude Code; the two files coexist without conflict because they target different clients with different config schemas.

Verify it works — after registration, run `claude mcp list` (CLI) or open the MCP panel (plugin) and look for `c64bridge`. Then ask Claude Code something like *“use vice: write a small BASIC program that clears the screen and prints HELLO CLAUDE”* — it should call `c64_select_backend` and `c64_program` directly. If tools do not appear, confirm Node 24+ is on `PATH`, that the server was approved at the requested scope, and that the backend is reachable per the Configuration section.

Example Workflow

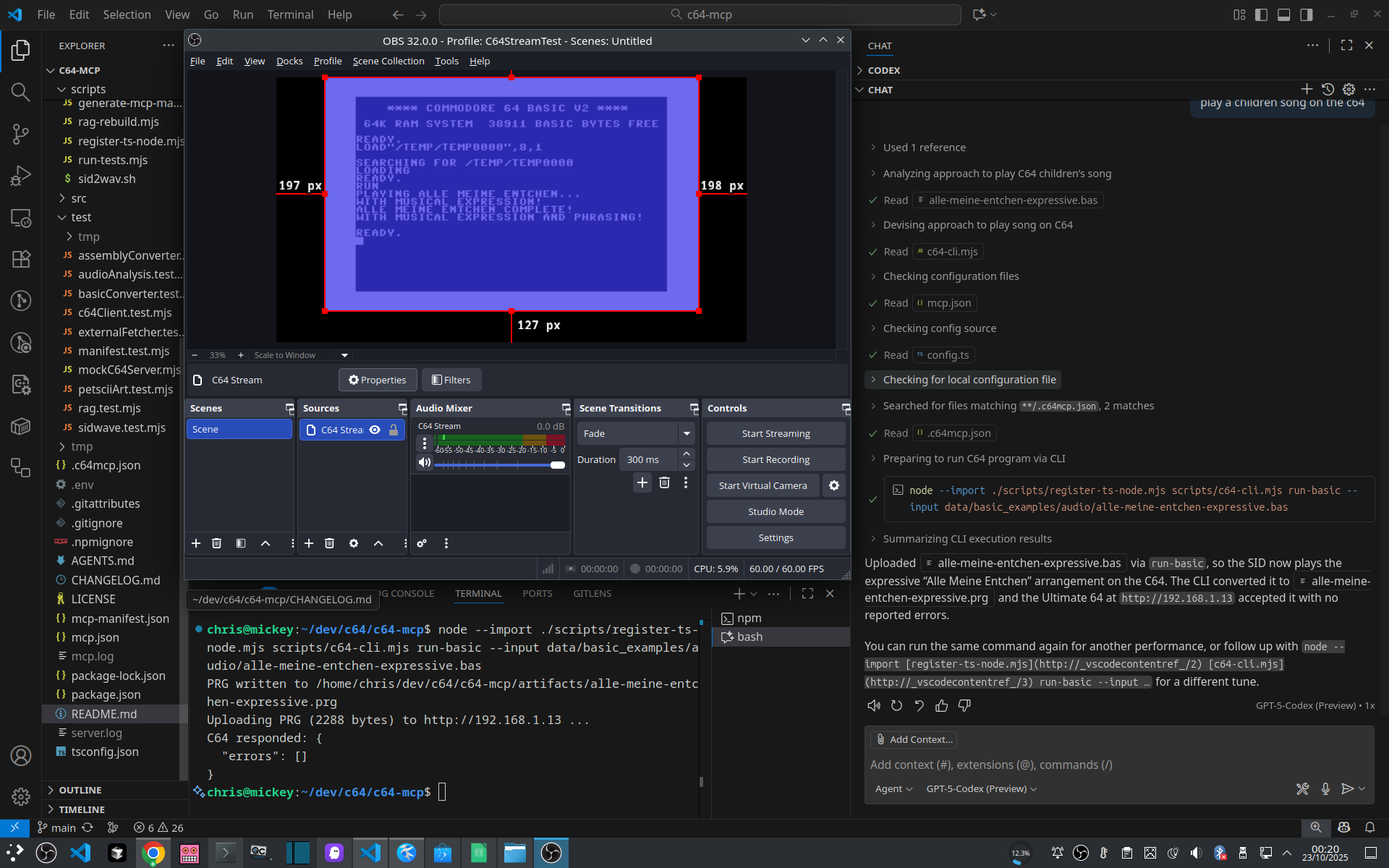

Compose a children’s song with ChatGPT and VS Code:

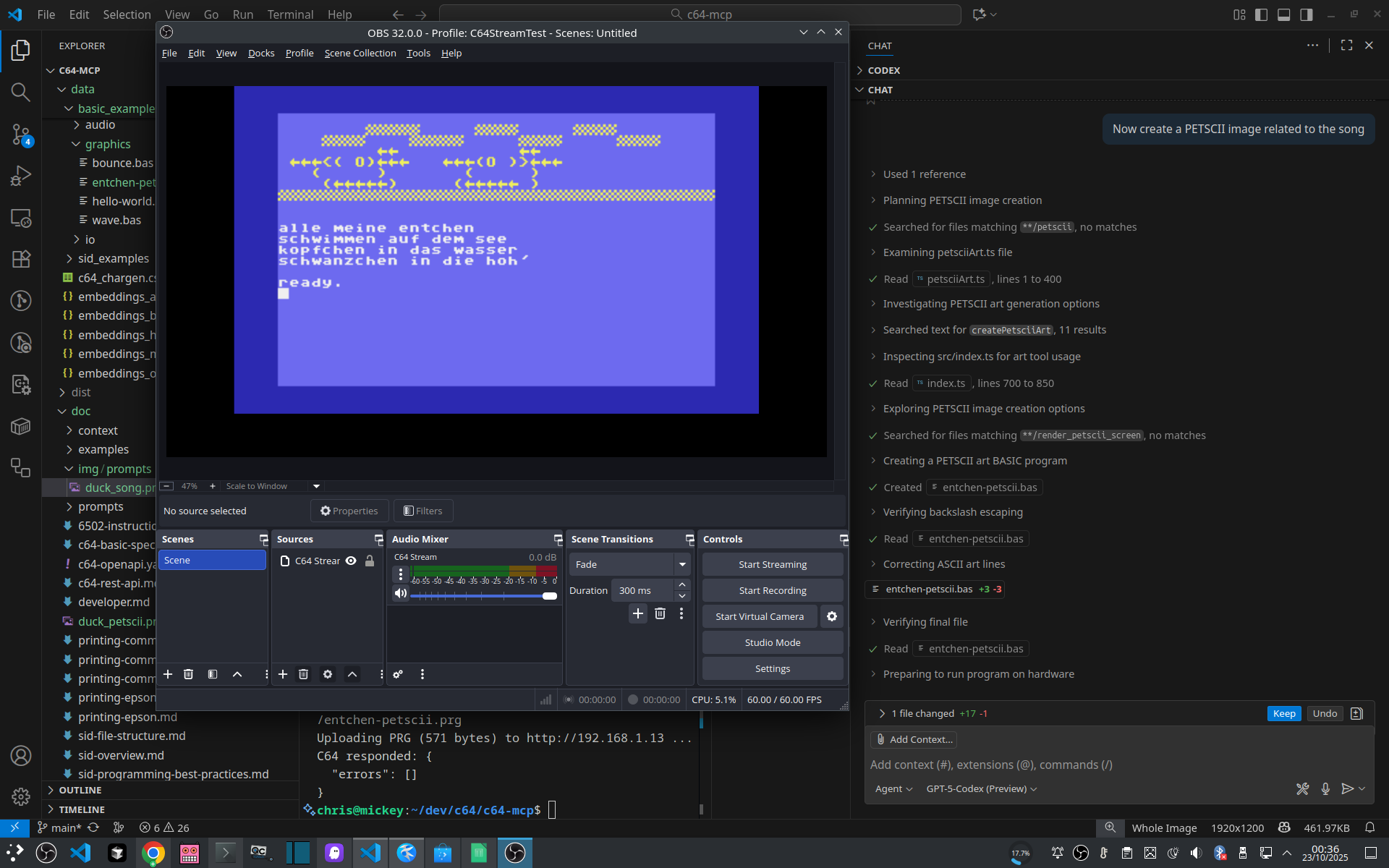

Then render PETSCII art for it:

This is representative of the intended workflow:

1. Ask the MCP client to generate or refine C64-oriented content.

2. Use grouped tools such as `c64_program`, `c64_graphics`, and `c64_sound` to execute it.

3. Verify the result via screen reads, frame capture, memory inspection, or audio analysis.

HTTP Invocation

• Preferred transport is `stdio`.
• The HTTP bridge is disabled by default and is intended only for manual testing.
• The following curl commands are illustrative so you can see what grouped MCP calls look like over HTTP.

# Upload and run BASIC
curl -s -X POST -H 'Content-Type: application/json' \
  -d '{"op":"upload_run_basic","program":"10 PRINT \"HELLO\"\n20 GOTO 10"}' \
  http://localhost:8000/tools/c64_program | jq

# Read current screen (PETSCII→ASCII)
curl -s -X POST -H 'Content-Type: application/json' \
  -d '{"op":"read_screen"}' \
  http://localhost:8000/tools/c64_memory | jq

# Reset the machine
curl -s -X POST -H 'Content-Type: application/json' \
  -d '{"op":"reset"}' \
  http://localhost:8000/tools/c64_system

Build and Test

The `./build` script at the project root wraps all development tasks behind a single, self-documented interface:

./build --help                                       # full command reference
./build                                              # install + build + test matrix (full CI run)
./build --skip-tests                                 # install + build only
./build build                                        # TypeScript compile + doc generation
./build test                                         # integration tests (mock backend)
./build test --real                                  # test against real hardware
./build test --platform vice --target mock           # single test leg
./build test:matrix                                  # full matrix (c64u/mock · vice/mock · vice/device)
./build coverage                                     # merged coverage report
./build coverage:single --platform c64u --target mock
./build check                                        # build + test matrix (no install)
./build rag:rebuild                                  # rebuild RAG embeddings
./build release --version 1.2.3                      # prepare a release

> Starting the MCP server is not managed by `./build`. Use `npm start` (from source) or `npx -y c64bridge@latest` (published package) as shown in the Quick Start section above.

Documentation

• DeepWiki - architecture and implementation overview
• doc/developer.md - development workflow and RAG details
• data/context/bootstrap.md - primer injected ahead of prompts
• doc/c64u/c64-openapi.yaml - REST surface (OpenAPI 3.1)
• AGENTS.md - LLM-facing quick setup, usage, and personas

Static MCP Interface

The repository contains an auto-generated static mirror of the MCP server interface in the ./mcp folder.

This allows agents to inspect the available tools, resources, prompts, and schemas without connecting to the server.

MCP API Reference

This MCP server exposes 17 tools, 27 resources, and 10 prompts for controlling your Commodore 64.

Tools

_Address range convention: `address` + `length` means start address plus byte count; `startAddress` + `endAddress` means inclusive bounds._

c64_batch

Execute multiple c64bridge tool calls in a single request. Reduces latency for multi-step workflows.

_No operations defined._

c64_config

Grouped entry point for configuration reads/writes, diagnostics, and snapshots.

c64_debug

Grouped entry point for VICE debugger operations (breakpoints, registers, stepping).

c64_disk

Grouped entry point for disk mounts, listings, image creation, and program discovery.

c64_drive

Grouped entry point for drive power, mode, reset, and ROM operations.

c64_extract

Grouped entry point for sprite/charset extraction, memory dumps, filesystem stats, and firmware health checks.

c64_graphics

Grouped entry point for frame capture and graphics rendering workflows.

c64_input

Cross-platform PETSCII typing plus native Ultimate keyboard and joystick events.

c64_memory

Grouped entry point for memory I/O, screen reads, and screen polling.

c64_printer

Grouped entry point for Commodore and Epson printing helpers.

c64_program

Grouped entry point for program upload, execution, and batch workflows.

c64_rag

Grouped entry point for BASIC and assembly RAG lookups.

c64_select_backend

Switch the active backend between C64U/U64 hardware, U2-family cartridges, and the VICE emulator at runtime.

c64_sound

Grouped entry point for SID control, playback, composition, and analysis workflows.

c64_stream

Grouped entry point for starting and stopping Ultimate streaming sessions.

c64_system

Grouped entry point for power, reset, menu, and background task control.

c64_vice

Grouped entry point for reading and updating selected VICE resources.

Resources

Prompts
